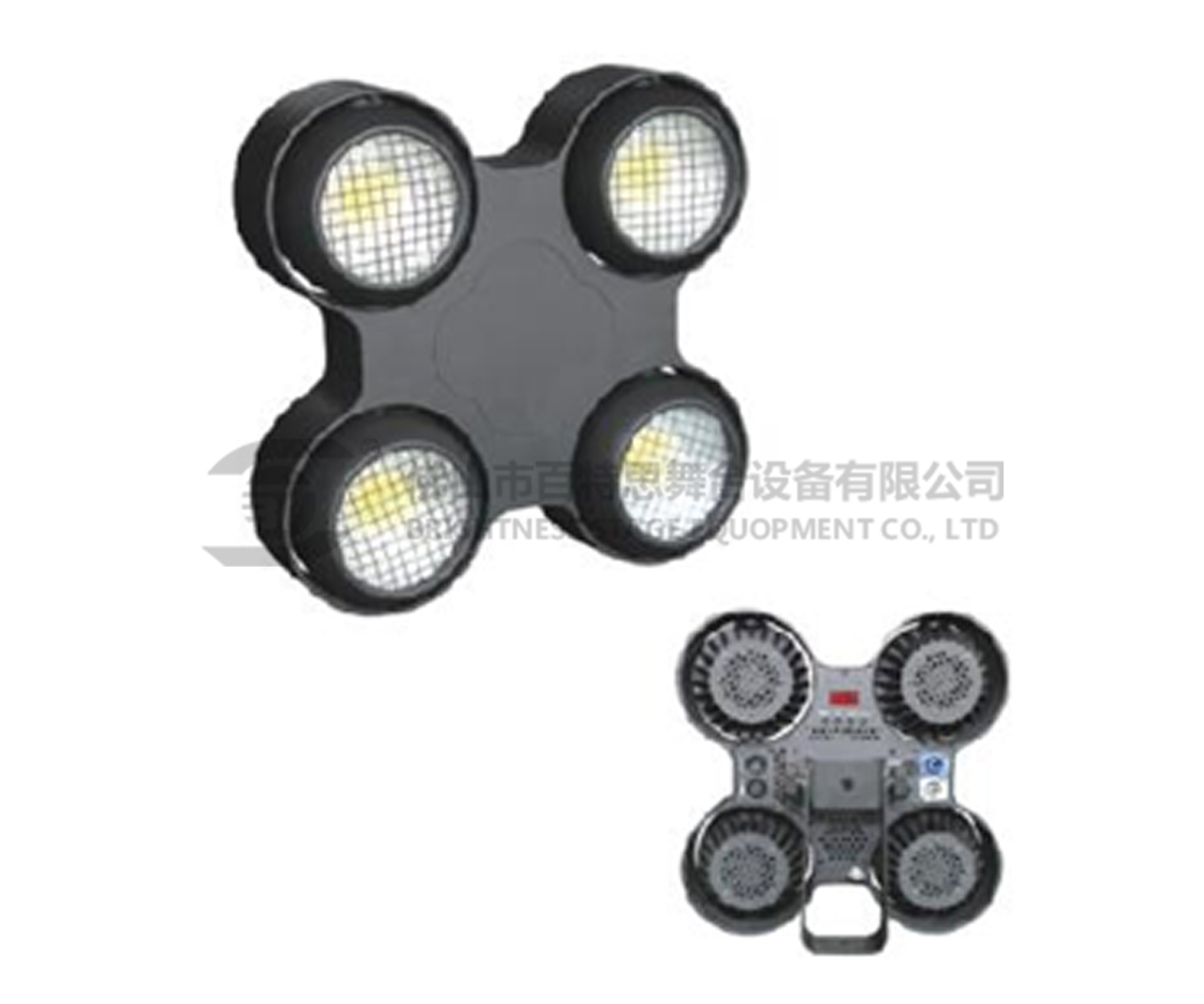

The Blinders use a high-performance COB curing module with high efficiency and a service life of 50,000 hours. There is no light decay phenomenon, using ARM processor, international standard DMX512 control mode, PWM digital system dimming, good linearity, no jitter. Constant voltage and constant current drive, the color temperature and color rendering remain stable, and will not change during the dimming process. Suitable scope of use: large stage, theater, outdoor open-air party, bar, wedding and other entertainment venues. The bar can be used for exploding light function.

Optical parameters:

Light source: 4×COB 100W LED module

Color temperature: 3200K/5600K optional

Average lifespan: 50000 hours

Color rendering index:Ra≥95

Light flux: 29600lm

Beam angle: 45°

Tilt angle: +/-90

Lens: Aspheric lens

Noise：1meter noise≤35dB



Electrical parameters:

Input voltage: AC100-240V/50/60Hz

Rated power: 420W power factor PF≥0.98

Drive current: 2.1A

Control System:

Dimming: 0-100% linear dimming, stroboscopic effect 0-20 times/sec

Control protocol: standard DMX512 protocol RDM function

Channel mode: 8 DMX channels

Heat dissipation system: It adopts a high thermal conductivity copper tube radiator, and the intelligent monitoring technology of the silent fan automatically adjusts the rotation speed according to the temperature of the lamp.

Noise: 1 meter noise ≤ 35dB

Signal line input: Waterproof DMX512 3-pin, 5-pin interface

Waterproof Daisy-chain Power Socket (for Power Cords)

Appearance specifications:

Size: 430×410×250mm

Weight: 12KG

Colour: Black

Shell: aluminum die-casting

Protection: IP20

Working environment: -30℃-45℃
